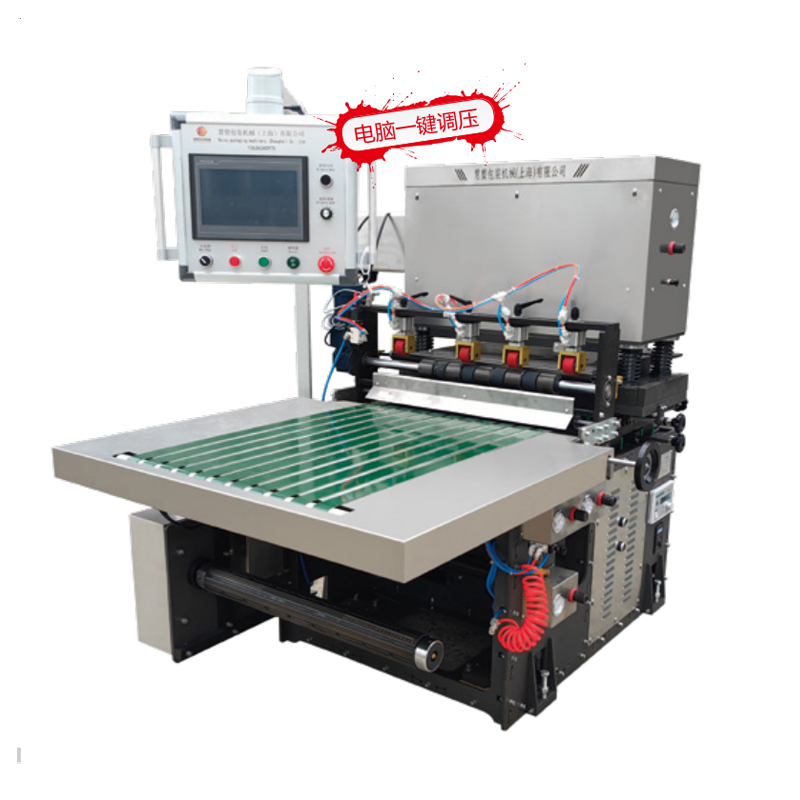

Composite Film Automatic Die Cutting Machine
Category：DIE CUTTING MACHINE；Model：HS-650SCMO-A
Category：DIE CUTTING MACHINE；Model：HS-650SCMO-A
Machine functions:Processing of irregular bags
Main electrical configuration:
1.Equipped with a Taiwanese brand controller buscontrol mode
2.Kunlun network touch screen, themain driver is an AC servo motor of 2KW
3.the pressure regulating servo motor is 0.4KW。
Suitable substrate:
BOPP、COPP、PET、PVC、Nylon and otherplastic composite films, multi-layer co extrudedfilms, aluminum plated composite films, paperplastic composite films, pure aluminum foilcomposite films
| Mechanical maximum beat | 30-180 times/minute |
| Bag size | 330*620 units: millimeters |
| Waste roll diameter | Ф 600 x 640 millimeters (diameter x width) |
| Positioning accuracy | ≤± 0.2 millimeters |
| External dimensions | 1950 x1500x1650 millimeters (length x widthx height) |
| Net weight of the whole machine | About 1500 kilograms |
| Wall panel thickness | 10mm/8mm (produced by Baosteel in Shanghai) |
| Color | Black body, stainless steel casing, partsphosphated, chrome plated |
| Control system model | Taiwan brand controller bus control compositefilm die-cutting machine control system. |
